Automation Tensile Testing System
- GB/T 228.1, GB/T 3098.1, GB/T 3098.10, GB/T 3077, GB/T 1040.1, GB/T 9341, GB/T 528, GB/T 7757, GB/T 6569, GB/T 16578.1, GB/T 3917.1, GB/T 1447, GB/T 1450.1, GB/T 35465, ISO 6892-1, ISO 527-1, ISO 14704, ASTM D790

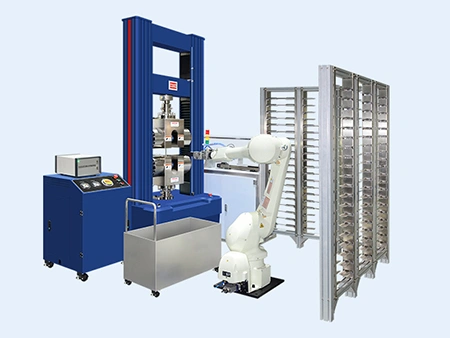

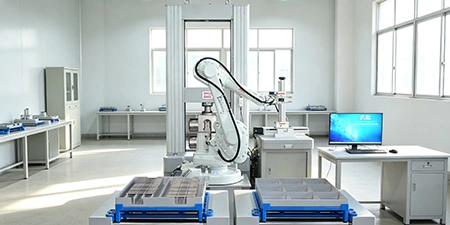

Automated tensile testing systems combine a universal testing frame, hydraulic parallel grips, an automatic or video extensometer, a specimen dimension measuring device, a specimen rack, a robotic arm, a waste collection bin, and control software. After the specimens are placed in the rack, the robot loads them for testing and picks them up when the tests are done, while the software controls the tests and analyzes the results. Electronic servo control uses feedback to regulate test movement, with configurations available in 1-to-1, 1-to-2, and 1-to-3 arrangements.
These automatic tensile testing systems can perform tension, compression, flexure, shear, peel, and tear tests on metals, non-metallic materials, composites, and structural components when equipped with the appropriate fixtures for the relevant GB, ISO, or ASTM test method.

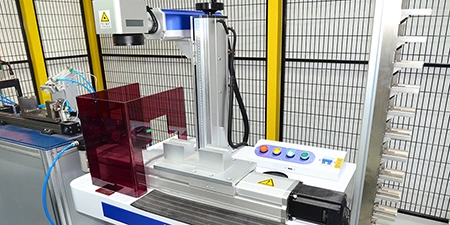

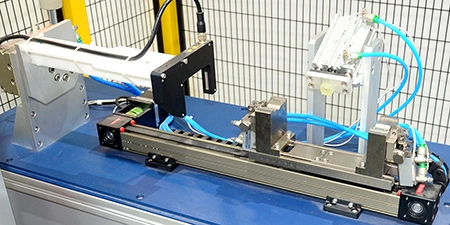

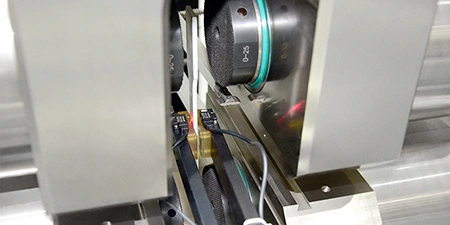

| ITEMS | PARAMETER | | | | |
| UTM | Capacity | 100kN | 300kN | 600kN | 1,000kN |
| Accuracy | Class 0.5 | ||||
| Force Range | 0.4%-100%FS | 1%-100%FS | |||
| Data sampling frequency | 2,500Hz | ||||
| Displacement Resolution | 1/1,000,000FS | ||||
| Displacement accuracy | ±0.5% of indicating | ||||
| Xhead Speed | 0.001-500mm/min | 0.001-250mm/min | 0.001-200mm/min | ||
| Testing Width | 600mm | 585mm | 650mm | 900mm | |
| Tensile Height | 400mm | 400mm | 500mm | 900mm | |
| Hydraulic Grips | Testing Force | 100kN | 300kN | 600kN | 1,000kN |
| Thickness for sample | 1-25mm | 1-30mm | 2-40mm | 2-40mm | |
| Diameter for sample | ⌀5-20mm | ⌀5-30mm | ⌀10-40mm | ⌀15-50mm | |
| Measuring Unit | Measuring Width | 5-30mm | 5-40mm | 5-50mm | |
| Measuring Thickness | 0.3-30mm | 2-40mm | |||
| Resolution | 0.02um | 1um | |||
| Auto Extensometer (Contact) | Gauge Length | 15-200mm | 15-300mm | ||
| Accuracy of strain | ±0.5% | ||||
| Travel | 0-80mm | 0-100mm | |||
| Resolution | 0.25% or 0.5μm, greater as chosen | ||||
| Accuracy | ±0.5% of indicating | ||||
| Clamping Capacity | 0.5-40mm | ||||
| Video Extensometer (Non Contact) | Measuring Range | 80mm/120mm/160mm(optional) | |||
| Accuracy of strain | Class 0.5 | ||||
| Resolution | 0.5um | ||||
| Data sampling frequency | 30Hz(Higher available) | ||||
| Image resolution | 5 million pixels | ||||
| Robot | Free degree | Six-degree-of-freedom robot | |||
| Radius of Working | 1,460mm | 2,100mm | |||
| Max. Loading | 13kg | 50kg | |||
| Repeating Accuracy | ±0.03mm | ±0.06mm | |||
