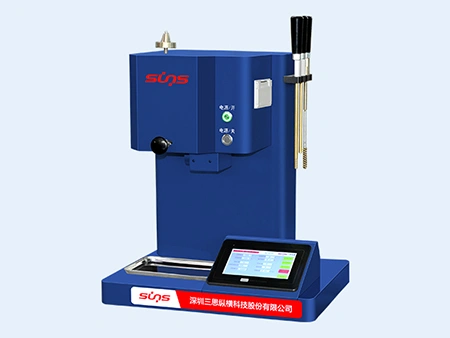

Melt flow index testing machines, also known as extrusion plastometers, test how much molten plastic or resin passes through a standard opening at a set temperature and load. Inside the heated barrel, a piston pushes the molten plastic through a die with a standard-sized opening. The plastic collected from the die is weighed, and its mass and the collection time are used to calculate the melt mass-flow rate (MFR) in grams per 10 minutes (g/10 min). These melt flow index testers can test PE, PS, PP, ABS, POM, polycarbonate (PC), polysulfone, nylon, and melt-processable fluoroplastics when fitted for the required test conditions. Melt flow index testers are widely used in plastics production, petrochemical laboratories, universities, and research and inspection centers to check how consistently plastic materials flow under the same test conditions.
| Model | MTM2000 |
| Temperature range | 40°C-450°C |
| Temperature drift | ≤0.5°C in 4 hours |
| Temperature fluctuation | ±0.2°C |
| Temperature uniformity between 10mm-70mm above the die | ±1°C |
| Temperature display resolution | 0.1°C |
| Time display resolution | 0.1s |
| Cutting time range | adjustable from 1-999s |
| Die diameter | ⌀2.095±0.005mm |
| Half-die diameter | ⌀1.05mm+0.005mm |
| Discharge orifice length | 8.000±0.025mm |
| Piston rod diameter | 9.474±0.007mm |
| Piston rod length | 6.35±0.13mm |
| The radius of curvature of the lower edge of the piston rod | R0.4mm |
| Loading cylinder diameter | ⌀9.550±0.007mm |
| Displacement measurement accuracy | 0.01mm |
| Volume method timing accuracy | 0.001s |
| Displacement measurement encoder | Omron photoelectric rotary encoder |
| Mass method test range | 0.1-150g/10min |
| Volume method test range | 0.01-800cm3/10min |
| Weight accuracy | ±0.5% |
| Test load | 8 levels, with 8 sets of weights (0.325 kg; 1.200 kg; 2.160 kg; 3.800 kg; 5.000 kg; 10.000 kg; 12.000 kg; 21.6 kg) |
| Power supply voltage | AC220V±10% , 50HZ |
| Approx. weight | 60kg |
| Dimension (L*W*H) | 310× 380 × 700 mm |
